Split Type HP Fast DC Charger

One 480kW Power Cube Two Charging Dispensers
Dispenser Supports 500A Liquid-cooling Charging Connector

Power Share between Two Dispensers with Patented CoolRingTM Technology

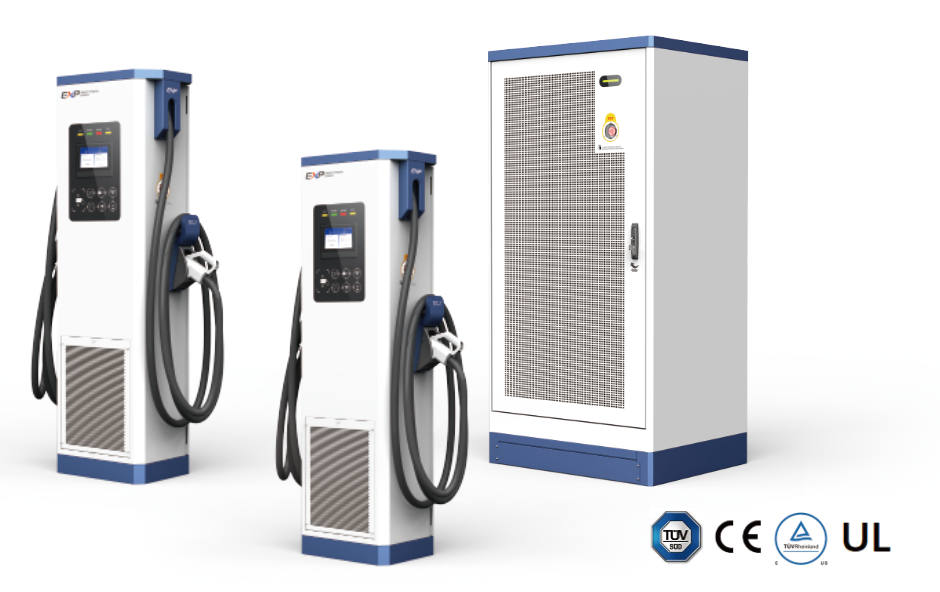

One 480kW Power Cube Two Charging Dispensers

EXP480K2-FER 480kW Power Cube

Configuration One power cube / Max 2 dispensers / 4 charging connectors
Max DC output power 480KW@300V ~ 1000V
Output DC voltage range 150V - 1000V
Max DC output current 1600A@300V, 960A@500V, 521A@920V, 480A@1000V
Dimensions W * H * D mm = 1000 * 2000 * 800mm
Protection IP54/IK10

EXP480K2-LDC 480kW Charging Dispenser

Configuration 2 GBT/2 CCS/CCS+GBT/ CCS+Chademo
Max DC output power 480KW@300V ~ 1000V
Max DC output current 500A@300V, 960A@500V, 521A@920V, 480A@1000V
Dimensions W * H * D mm = 500 * 1750 * 350mm
Protection IP55

CoolRingTM power sharing can be used to centralize power from different charging connectors and dispensers.

COOl ring solution

Energy flow is transferred between charging dispensers and connectors based on precise intelligent control. The power sharing function is designed and defined as CoolRing in Infypower Technology.

xiank

Power to single EV
● 480 kW dedicated to one dispenser
240 kW shared by two dispensers
 120 kW shared by four EVs from
two Dispensers

●IP55 for the dispenser and
  IP54 for the power cube
●Safety protection via Fuse, EPO,

  SPD, Leakage test and insulation

User access and payment
● OTA, RFID and mobile APP support

● OCPP integration
● Local LCD and Web configuration
● Remote diagnosis and updates

Charging standards
● CCS-CCS

● CCS-GBT
● CCS+CHAdeMO
● GBT+GBT

How is power shared in the solution?

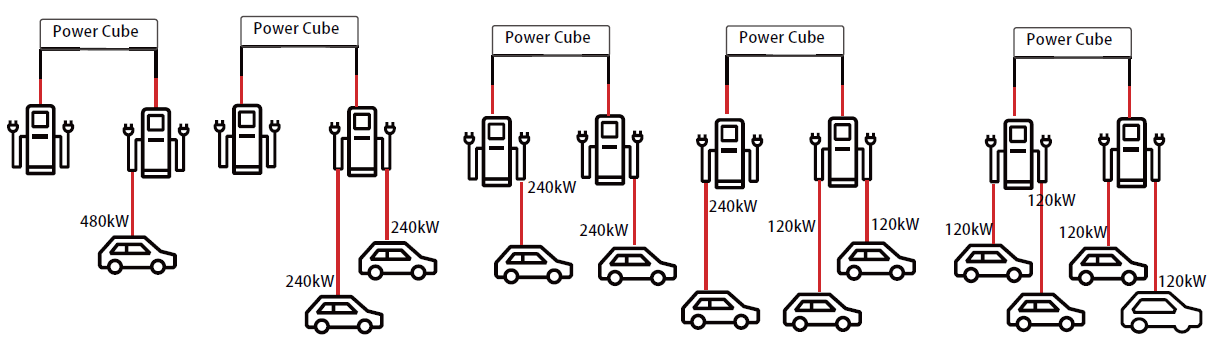

Power sharing diagram



All energy dedicated to
one EV at any dispenser
with up to 480kW power

Max 480kW power
evenly shared by two EVs,
each getting 240kW.



Energy shared between two
dispensers with each
getting 240kW power

240kW power delivered to one
dispenser is shared by two EVs,
each obtaining 120kW.

Max four EVs charged simultaneously
and each obtains 120kW.

EXP180K2-FT DC FAST Charger
CCS / CHAdeMO/ GBT DC 180kW
AC Type2 22kW / 32A

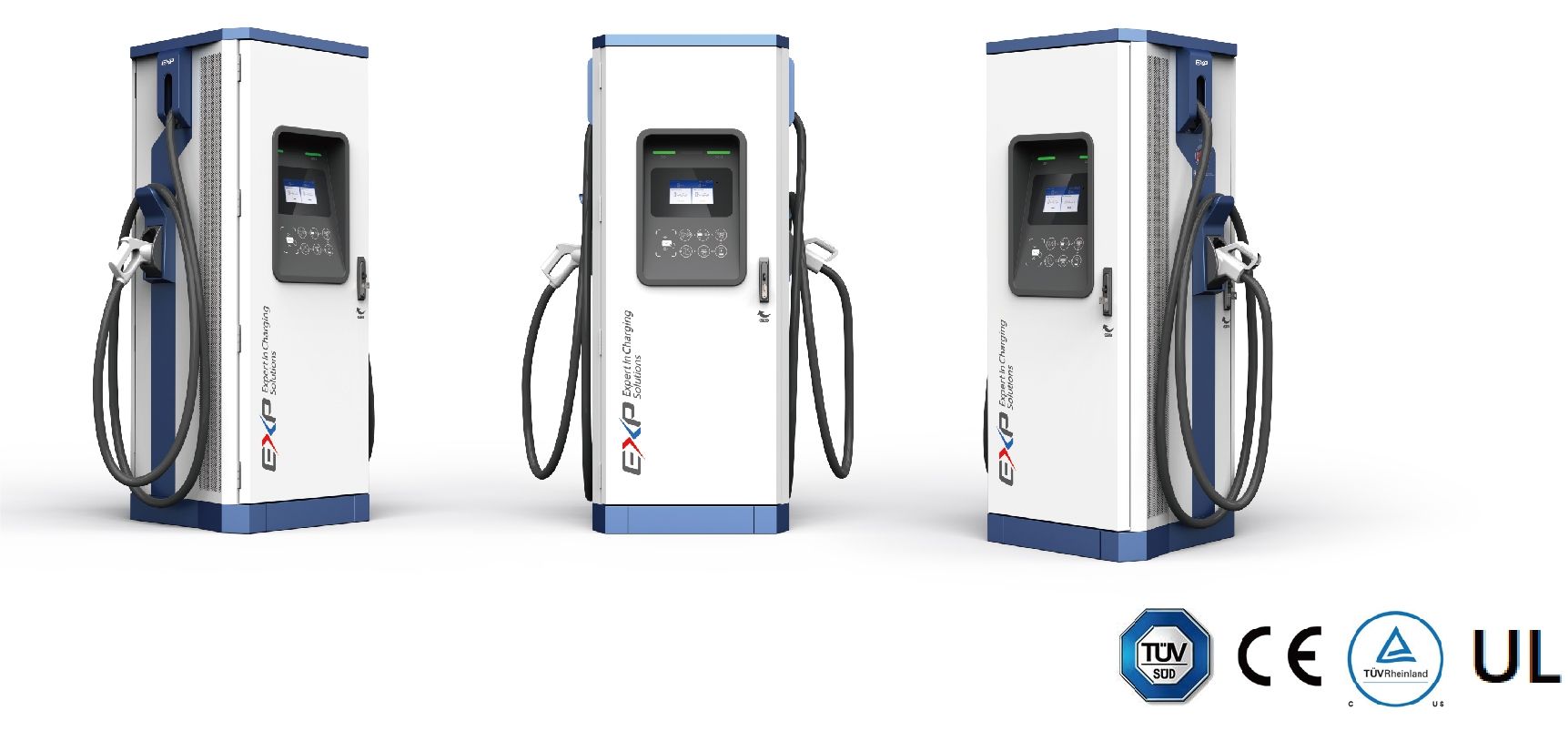

DC Fast Charging Station1

Parameters

Output DC voltage range DC 150V-1000V
Max DC output current 600A@300V/ 360A@500V/ 180A@1000V
Each charging cables max output current is 200A / CCS
(optional 250A CCS2 or 300A CCS1) , 250A /GBT , 125A /CHADEMO
Max DC output power 180kW
Dimensions 700*1750*750 mm
Protection IP55/IK10

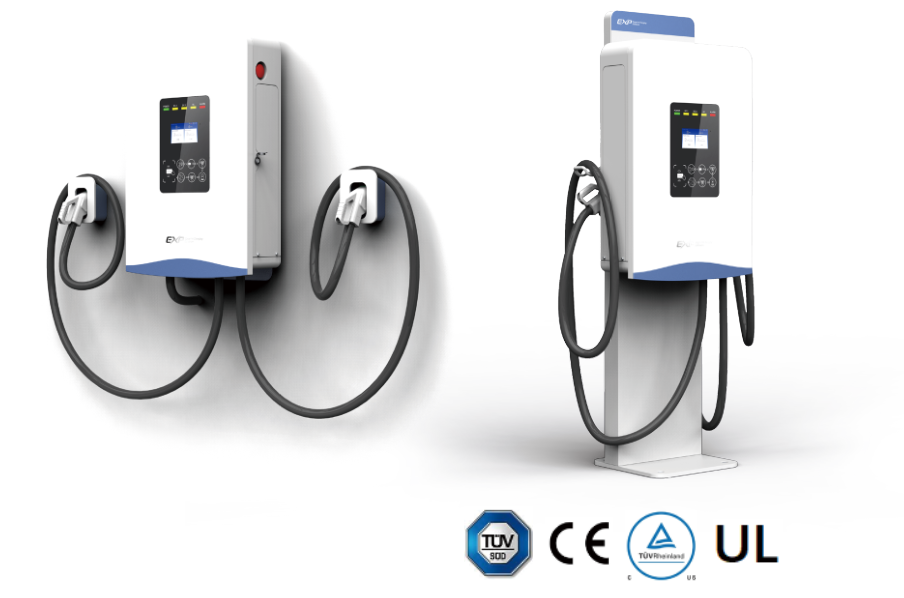

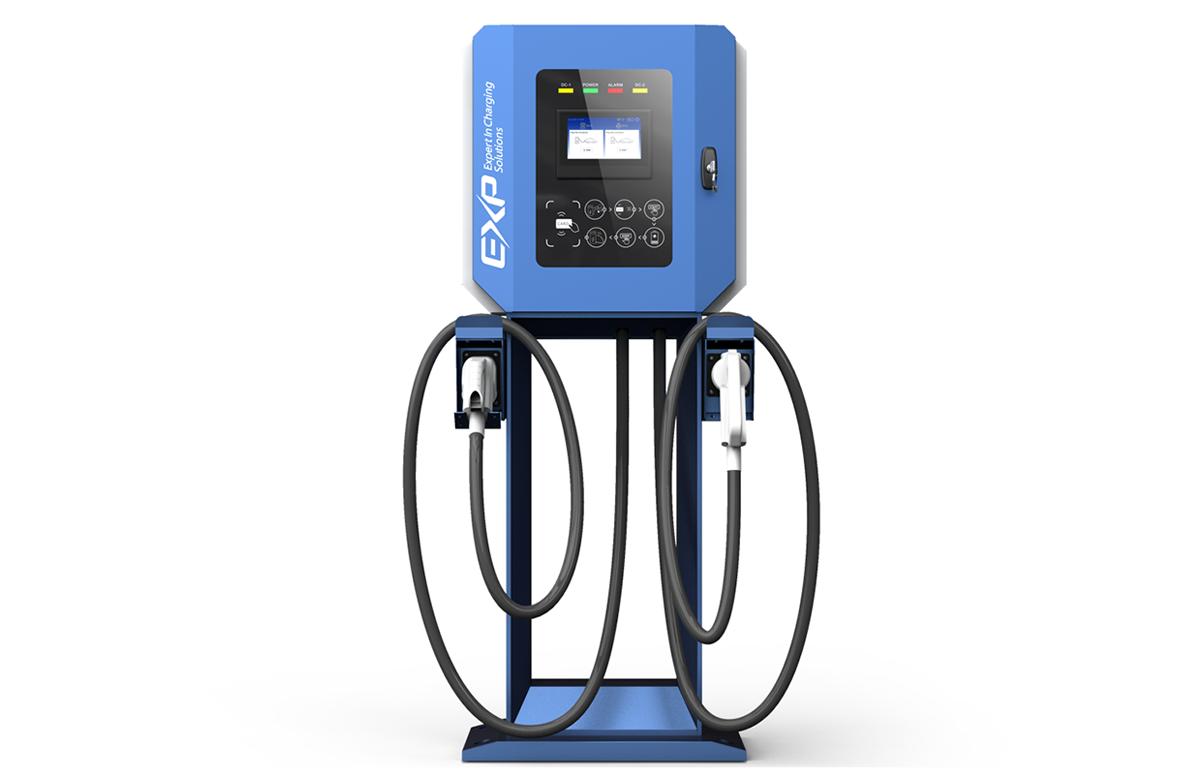

EXP60K3-FT Fast DC Charger
Easy wall-mounting or stand-column application

CCS / CHAdeMO / GBT DC 60kW
AC Type2 22kW / 32A

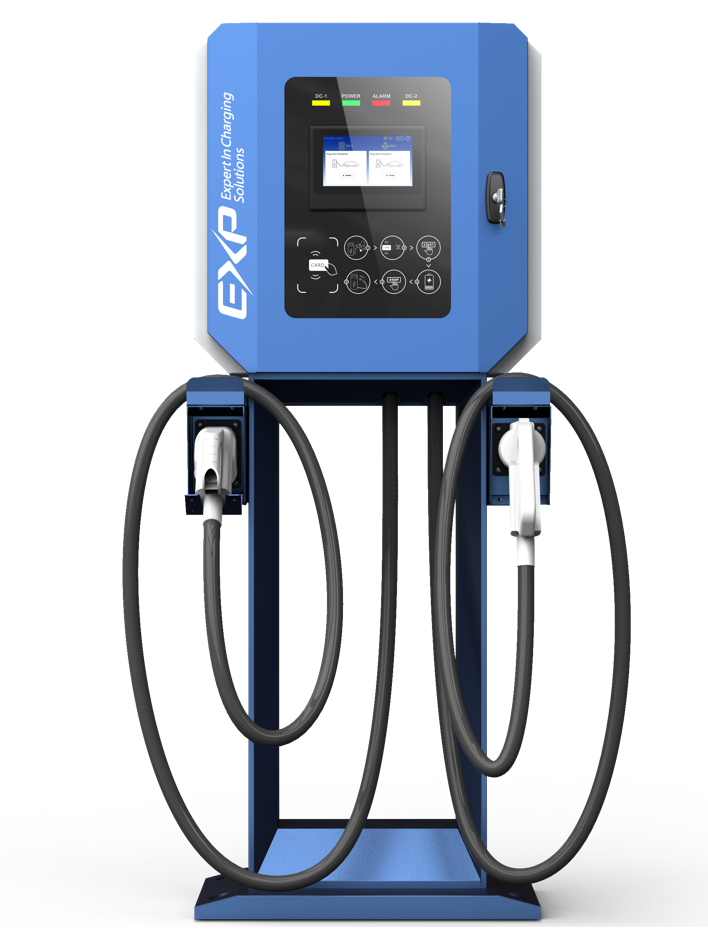

EXP60K4-FT Fast DC Charger

Parameters

Output DC voltage range DC 150V-1000V
Max DC output current 60A/1000V, 80A/750V, 120A /500V, 200A/300V
Each charging cables max output current is 200A/ CCS, 200A/ GBT,
125A/CHADEMO
Max DC output power 60kW
Dimensions 700*950*240 mm
Protection IP55/IK10

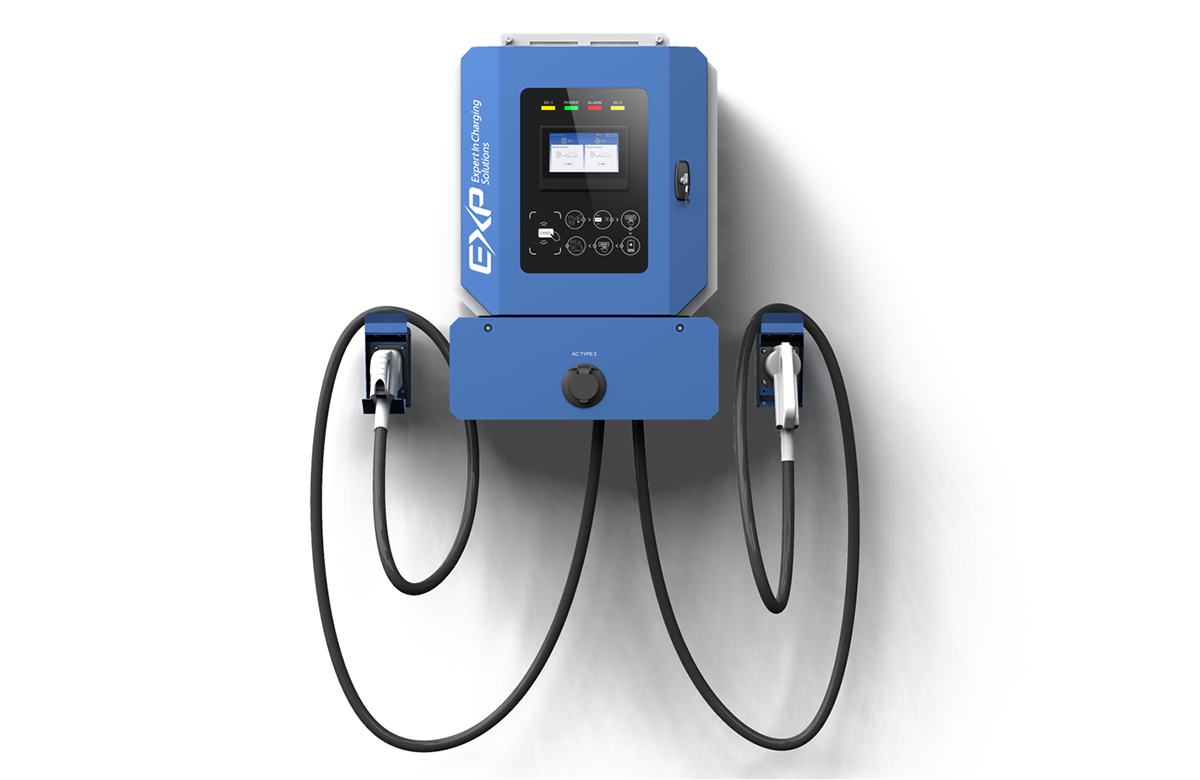

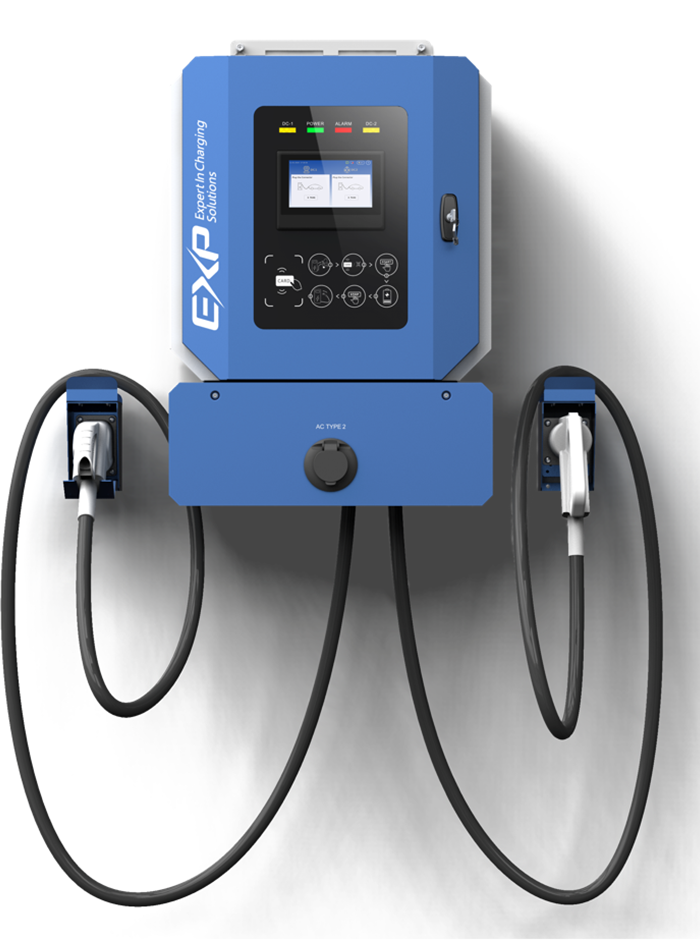

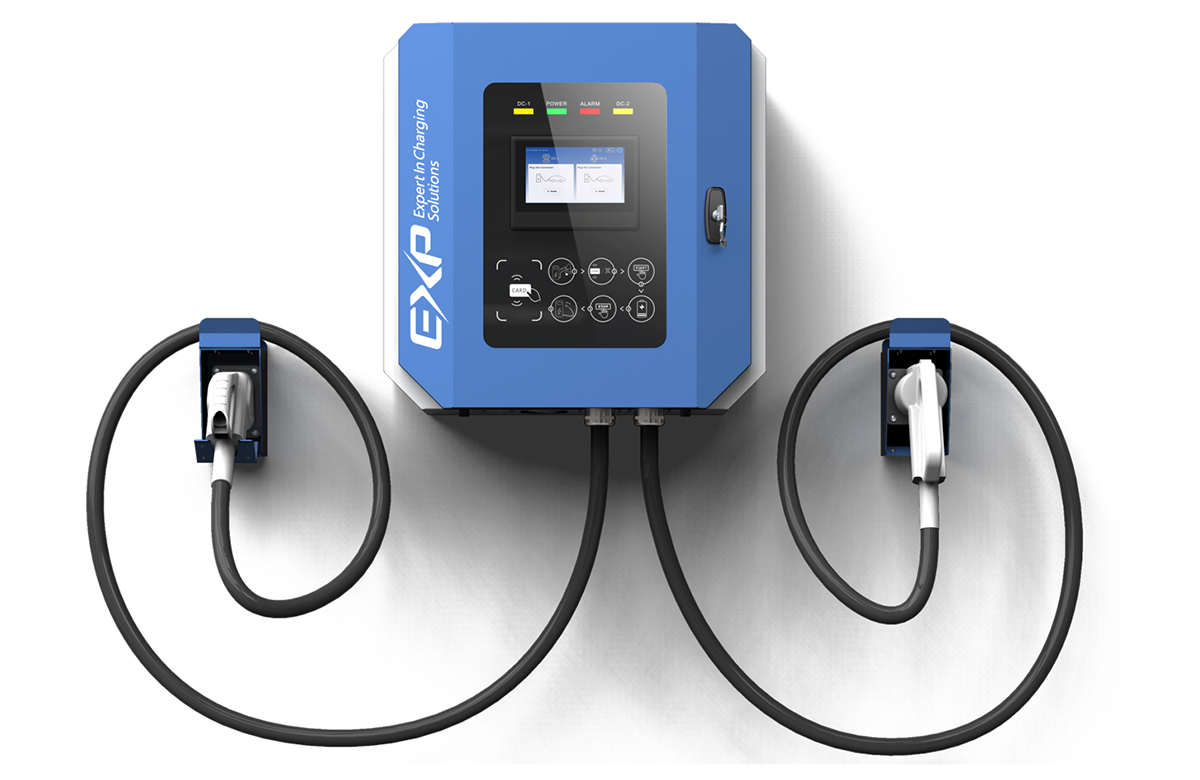

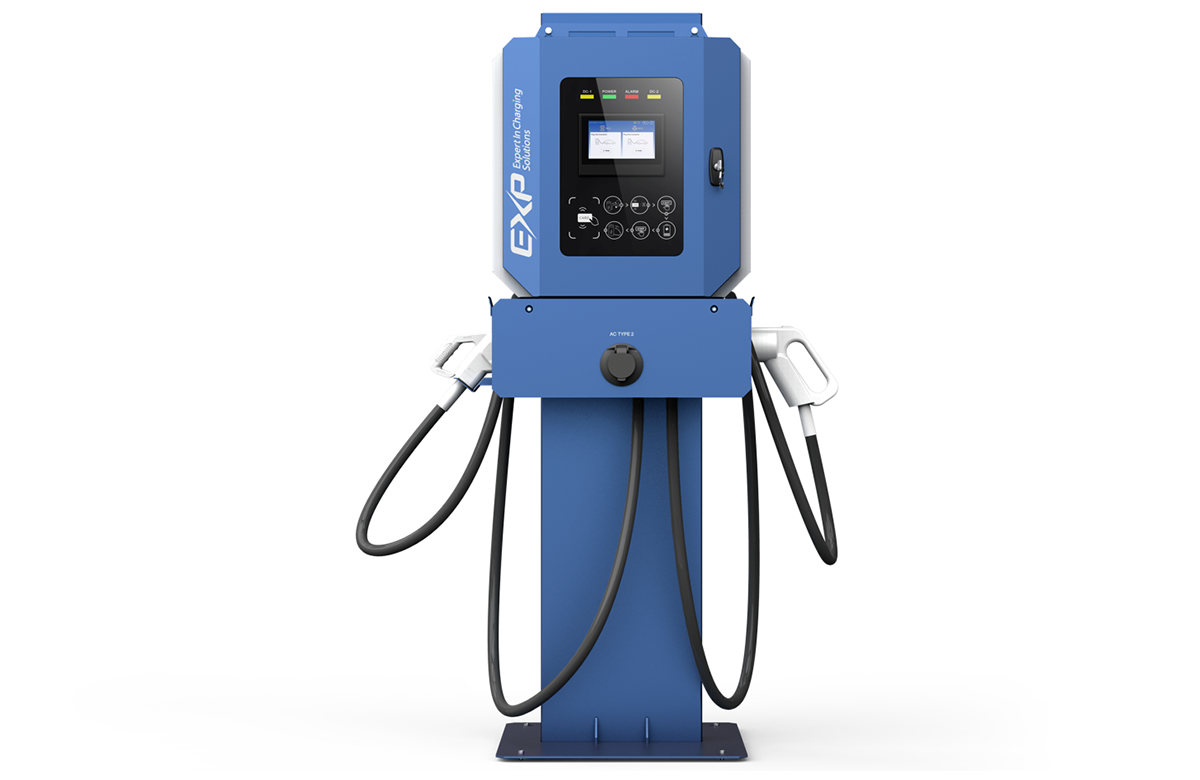

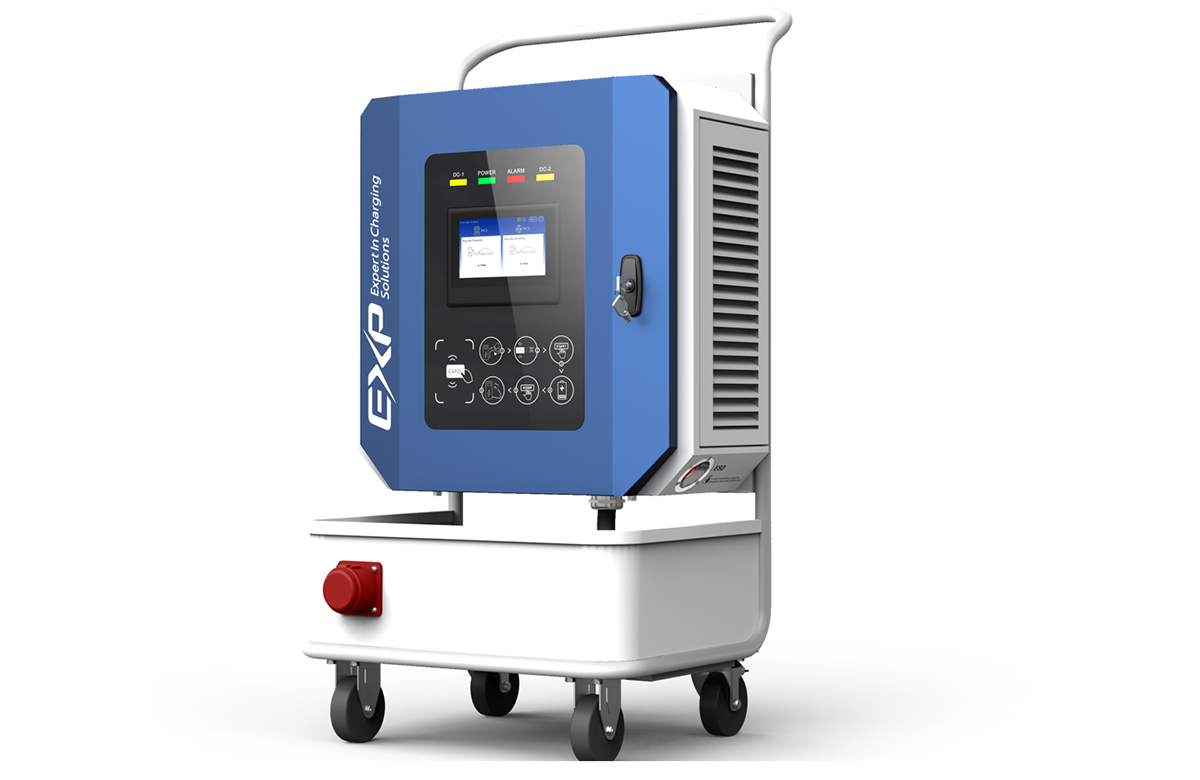

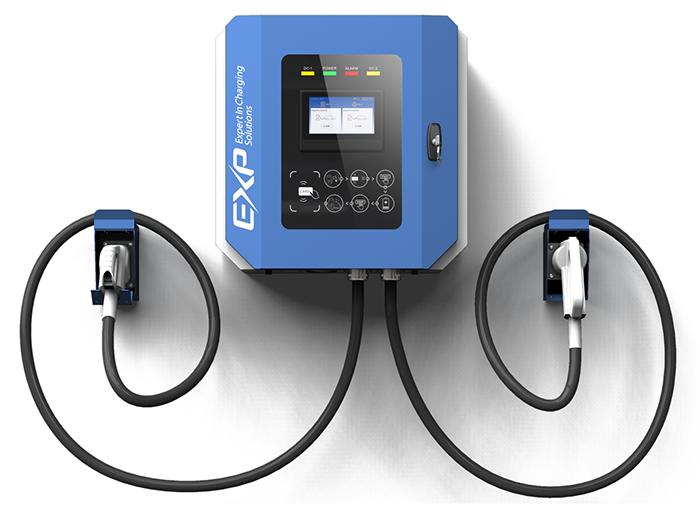

EXP30K2-FDW Fast Wallbox DC Charger
Small size and light-weight
30kW CCS/ CHAdeMO/ GBT DC + 22kW AC
Easy to be deployed by wall-mounting, column standing and cart-pushing installation

Five Models for EXP30K2

Flexible Scenarios
IP54, -20℃~50℃for
full power charging
Wall mounted ,
column standing,

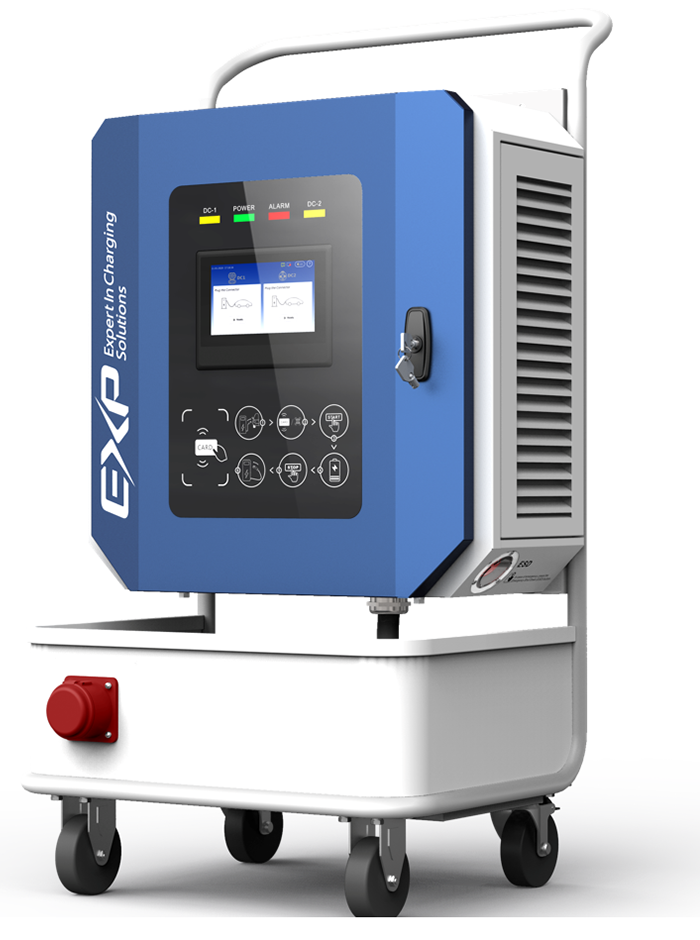

cart pushing installation

User access and payment
OTA, RFID and mobile APP support
OCPP integration

Local LCD and Web configuration
Remote diagnosis and updates

Internal AC and DC energy
meters with high precision

Safety protection via Fuse,
EPO, SPD, MCB, Leakage test
and insulation
RCD-B when configure AC charging

Charging standards
CCS-1, CCS-2, GBT

and CHAdeMO
Optional AC charging Socket

Parameters

Output DC voltage range DC 150V-1000V
Max DC output current 100A
Max DC output power 30kW
Optional AC charging output AC charging socket 32A / 3P / 22kw
Charging connector capacity 125A / 1000V for CCS, 125A / 500V for CHADEMO 125A / 750V for GBT 32A / 22KW for AC
Dimensions 610*610*270 mm
Protection IP54/IK10

RCD-B is available when configure AC charging socket.

Features

● Internal high precision AC and DC energy meter, optional VDE and PTB certification type LAN and LTE wireless support, OTA support, RFID authorization and Mobile App payment support

● Multiple charging modes: Auto basis,Time basis,Amount basis,Energy basis,SOC basis Multiple power distribution modes: stand alone,current switch,plug switch,full hold

● OCPP 1.6 J support with update sw to 2.0, smart charge and power management support

● CoolRingTM function realizes controlled power transfer between the connectors to improve the charging operation efficiency

● Full safety function with output contactor and fuse, EPO, SPD, leakage protection switch, insulation detect protection

● User friendly interface with tempered glass protective 7" TFT capacitive touch screen LCD

Vehicle to Grid
DC2DC Power Module
