Liquid-Cooled
Split Type High Power Charger
Product Introduction

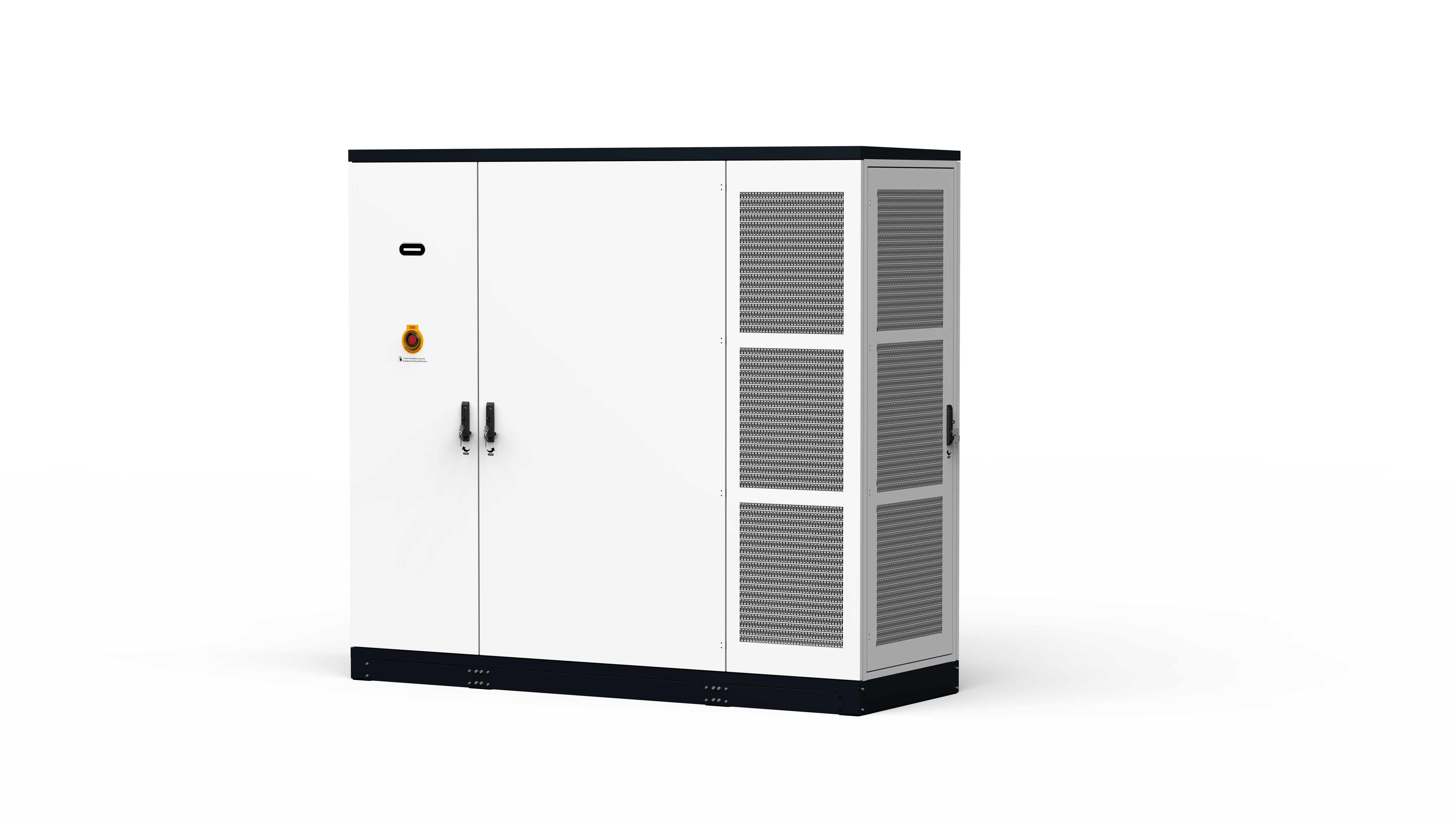

EXP1500K7-LZR8 split type Megawatt Charging System (MCS) charger is specifically designed for EV charging operators with flexible split and multi charging point solutions. It supports MCS/CCS/NACS/GBT charging connectors, delivers up to 1500kW of output power, and accommodates up to 16 charging connectors via 8 dual-connector dispensers or 16 single-connector dispensers. An optional 500A/600A/1500A liquid-cooled charging connector is available, and each connector can receive maximum power through intelligent power switching. An intelligent power switching matrix dynamically allocates power modules among charging connectors, maximizing overall power utilization efficiency. The fully liquid-cooled power module design provides exceptional protection and high reliability. The overhead dispenser solution for bus depots is also available, utilizing the same power cube.
-
Building-block modular design, simplified & standardized interface -
Up to 16 charging channels, configurable for 300A, 500A, or max 800A output -
TUV CE, RED, CB, UL, OCA, and NMI Eichrecht certification -
Power cube IP65, floor-standing dispenser IP55, overhead dispenser IP65, reliable & robust -
Customizable dispenser, overhead dispenser solution for bus depots -
WEB/APP Maintenance Backend System enhances the operation and maintenance effectiveness -
Power cube 65dB, floor-standing dispenser 55dB, overhead dispenser 0dB -
Supports 2 units in parallel, delivering up to 3MW output power
Technical Specification
-
EXP1500K7
-
AC input
Frequency 45Hz-65Hz Voltage 45Hz~65Hz; CE: 3-phase+(N)+PE, 380Vac/400Vac±10%; UL: 3-phase+(N)+PE, 480Vac±10% Max input current CE: 4*600A@380Vac; UL: 4*475A@480Vac Power factor >0.99 THDi <5% (rated input) -
DC output
Voltage 200Vdc~1000Vdc (constant power voltage range 312.5Vdc~1000Vdc) Max output current 800A for each output channel Max output power 1500kW Output channel/Dispenser Max 16 output charging channels (max 8 dual-connector dispensers or 16 single-connector dispensers) -
Mechanical Parameters
Dimensions (W*D*H) 2400mm*850mm*2200mm Weight (cabinet+module) 1600kg+24*32.5kg=2380kg (full liquid) -
Operating Environment
Operating temperature -30°C~+70°C, full power output up to 50°C, power derating 5%/°C above 50°C Transportation/Storage -40°C~+75°C Relative humidity ≤95%RH, non-condensing Altitude 2000m Atmospheric pressure 80kPa~110kPa Cooling method Liquid cooling
