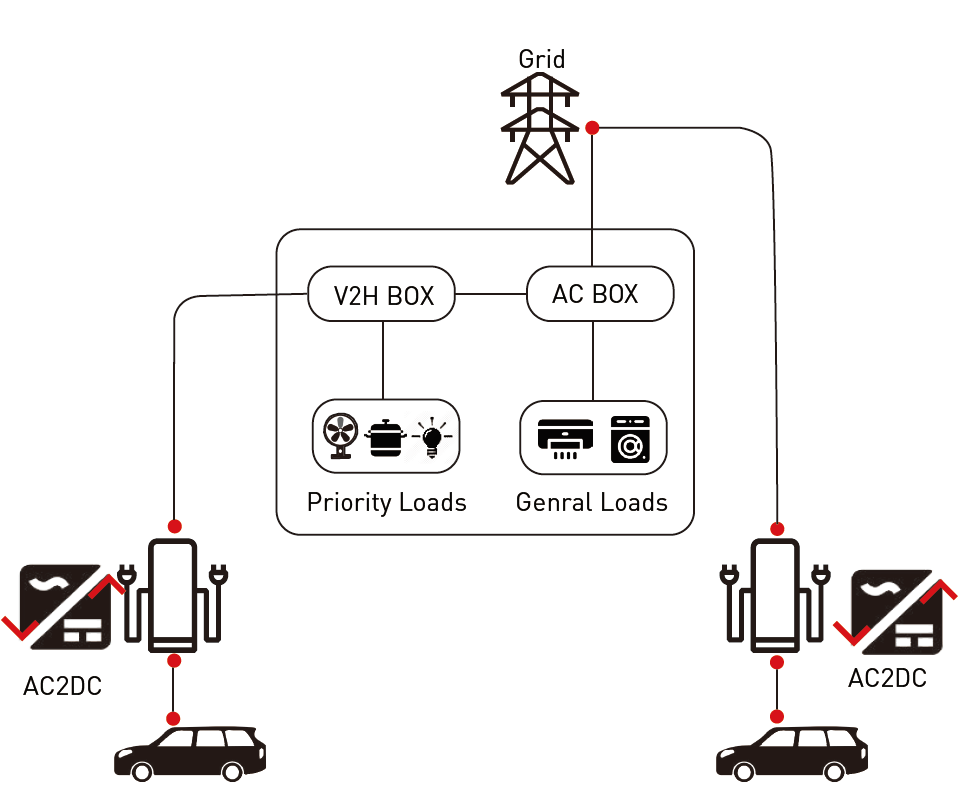

Energy in electric vehicle batteries can be used for multiple purposes, and these functions are generally defined as V2X applications. specifically, power stored in on-board batteries can be sold be the Grid in V2G (vehicle to Grid) function. When the Grid falls off,families can alternatively obtain power from EV battery for emergency household use, which is viewed as V2H (vehicle to home) function. Besides, the easy and efficient power conversion in V2G make it a vital node in realizing smart grid, small grid, energy storage system and etc,.

Vehicle to Grid 1

V2G

EXP07K1E
7kW750V Single Phase V2G Wallbox DC Charger
Parameters

Rated Power

7kW

AC Side

100V ~264V/L+N+PE

DC Voltage

200V~750V

Max DC current

23A

Charging Standard CCS1 / CCS2 / CHAdeMo / GBT
Certification IP65 / UL/CE / VDE4105 / G99 / UL1741SA / SB
Dimension and Weight 450mm ( H ) x320mm ( W ) x200mm ( D ) / ≤ 30 kg

EXP30K4E
22kW/30kW 1000Vdc Three Phase V2G Wallbox DC Charger

Parameters

Rated Power

22kW/30kW

AC Side

260V ~530V/3L+PE

DC Voltage

150V~1000V

Max DC current

75A/100A

Charging Standard CCS1 / CCS2 / CHAdeMo / GBT
Certification IP54 / UL/CE / VDE4105 / G99 / UL1741SA / SB
Dimension and Weight 610*610*270mm/65kg

EXP60K4E
44kW/60kW 1000Vdc Three Phase V2G Wallbox DC Charger

Parameters

Rated Power

44kW/60kW

AC Side

260V ~530V/3L+PE

DC Voltage

150V~1000V

Max DC current

150A/200A

Charging Standard CCS1 / CCS2 / CHAdeMo / GBT
Certification IP55 / UL/CE / VDE4105 / G99 / UL1741SA / SB
Dimension and Weight 750*1000*240mm/120kg
