Infypower has a complete series of AC2DC rectification module especially suitable for EV DC charging station, covering a wide range of input and output voltage. The current product portfolio covers the output power ranging from 4kw, 15kw, 16kw, 20kw and 30kW. Having devoted years of research and accumulated solid experience in developing power modules with high power density, low noise and perfect reliability, we are open to support customized module specifications for individual customer.
Features
● Full hot plug design
● Inside high frequency transformer isolation
● High efficiency over the full load range, full load efficiency higher than 95% Constant current for higher output power at low output voltage
● An internal patented intelligent discharge circuit automatically discharges residual charge
● 3 phase without neutral eliminates the risk of high neutral currents
● 3 phase active power factor correction technology, reduces the harmonic interference to the grid
● Dual DSP design, provides the full digital control ,less components means higher reliability Wide operating temperature range: -40°C-+75°C
Single phase AC input
●REG75007S
300vdc-750vdc, 0-6.7A, 4KW
●REG50010s
200vdc-500vdc, 0-10A, 4kW
●REG75020SG
150vdc-750vdc, 0-20A, 7kW

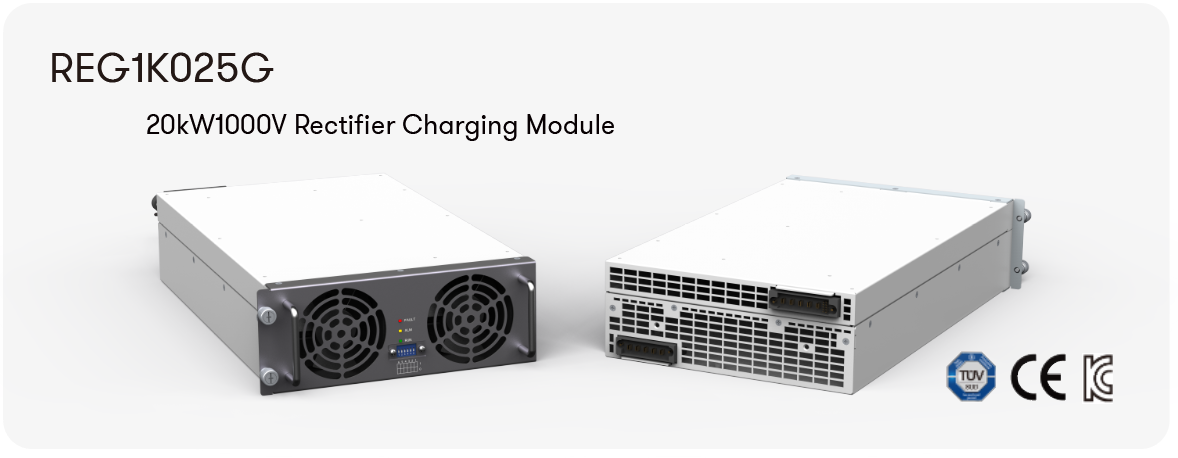

Parameters
| AC Input voltage and current | 260Vac ~530Vac, 38A |
| DC output voltage and current | 150Vdc~1000Vdc, 25A |
| Rated power | 20kW |
| Dimensions and weight | 84mm(H)×226mm(W)×395mm(D), ≤11 kg |

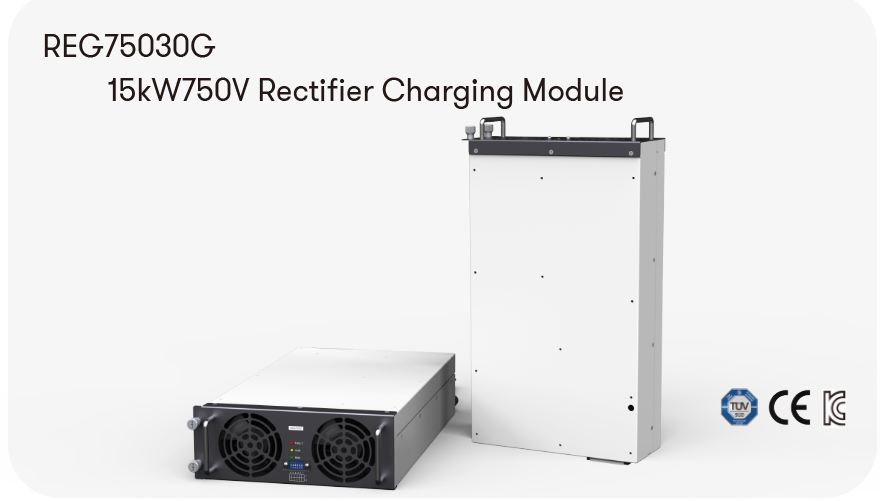

Parameters
| AC Input voltage and current | 260Vac ~530Vac, 30A |
| DC output voltage and current | 150Vdc~750Vdc, 25A |
| Rated power | 15kW |
| Dimensions and weight | 84mm(H)×226mm(W)×395mm(D), ≤11 kg |

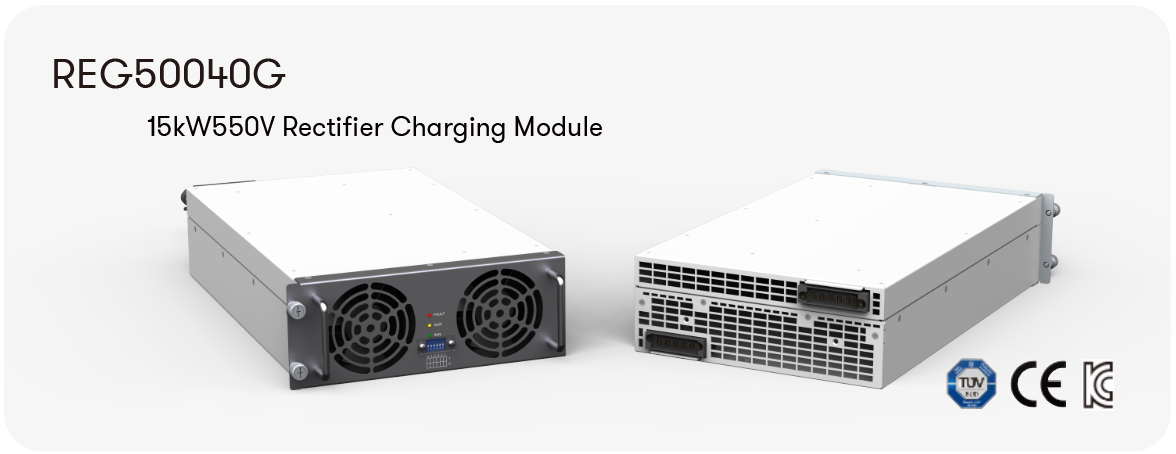

Parameters
|
AC Input voltage and current |
260Vac ~530Vac, 30A |
|
DC output voltage and current |
150Vdc~550Vdc, 35A |
|
Rated power |
15kW |
|
Dimensions and weight |
84mm(H)×226mm(W)×395mm(D), ≤11 kg |

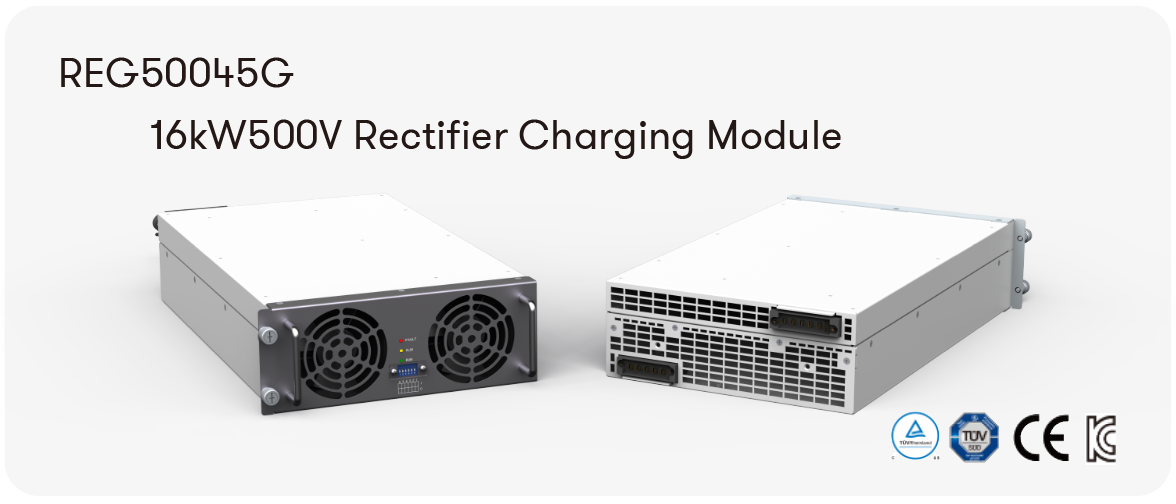

Parameters
|
AC Input voltage and current |
260Vac ~530Vac, 32A |
|
DC output voltage and current |
150Vdc~500Vdc, 40A |
|
Rated power |
16kW |
|
Dimensions and weight |
84mm（H）×226mm（W）×395mm（D), ≤11 kg |

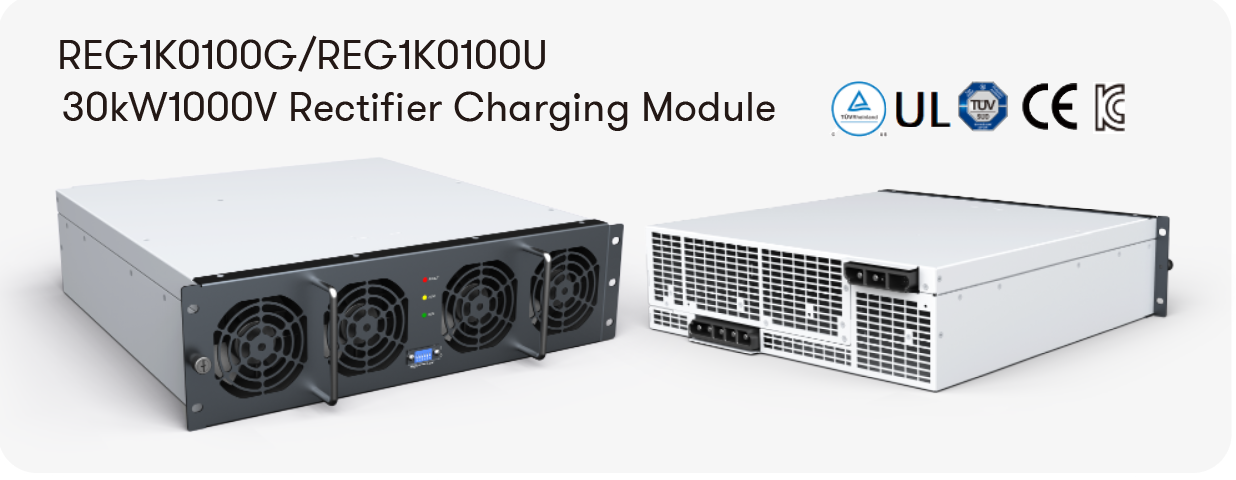

Parameters
|
AC Input voltage and current |
260Vac ～530Vac, 58A |
|
DC output voltage and current |
150Vdc～1000Vdc, 100A |
|
Rated power |
30kW |
|
Dimensions and weight |
110mm（H）×385mm（W）×395mm（D), ≤22.5 kg |

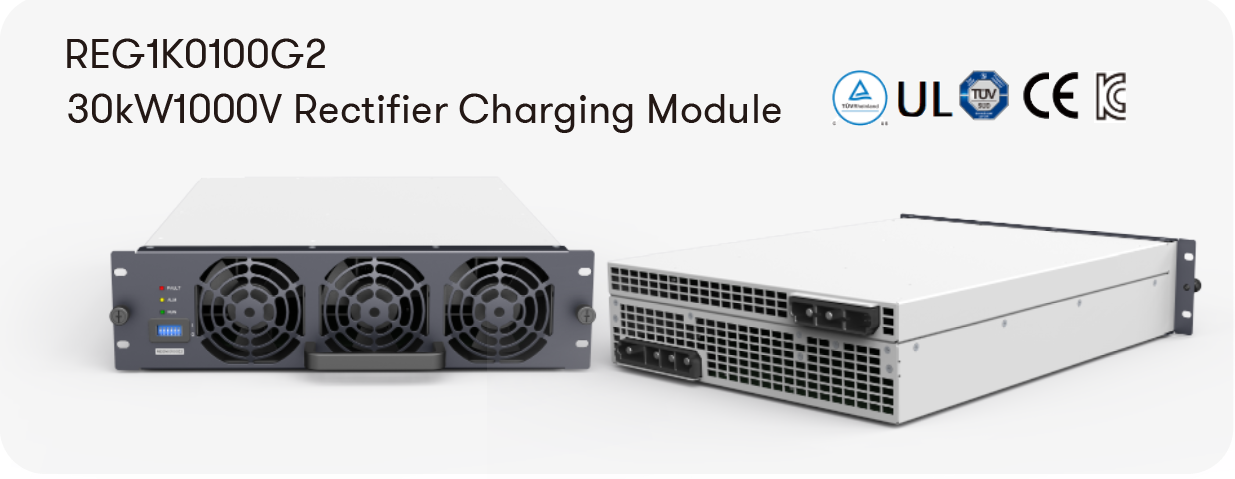

Parameters
|
AC Input voltage and current |
260Vac ～530Vac, 58A |
|
DC output voltage and current |
150Vdc～1000Vdc, 100A |
|
Rated power |
30kW |
|
Dimensions and weight |
84mm（H）×300mm（W）×395mm（D), ≤17 kg |
TUV CE/UL, KC Certification, EMC class B level
Air duct isolation design for high protection and high reliability for harsh environment
Low standby power consumption with 12W. EPO function to realize instant output power off
Single Phase AC input Rectifier Module
The single phase AC input AC2DC rectification module is perfectly suitable for commercial and household applica-
tion without 3-phase Grid. It can also be easily integrated into portable EV DC charger to provide with high power
density and reliability energy.
Parameter
|
AC Input voltage and current |
85Vac ～300Vac, 30A |
|
DC output voltage and current |
300Vdc～750Vdc, 6.7A |
|
Rated power |
4kW |
|
Dimensions and weight |
41.2mm（H）×125mm（W）×300mm（D), ≤2.75 kg |
Parameters
|
AC Input voltage and current |
85Vac ～300Vac, 30A |
|
DC output voltage and current |
200Vdc～500Vdc, 10A |
|
Rated power |
4kW |
|
Dimensions and weight |
41.2mm（H）×125mm（W）×300mm（D), ≤2.75 kg |
Parameters
| AC Input voltage and current | 90Vac ～280Vac, 20A |
| DC output voltage and current | 150Vdc～750Vdc, 20A |
| Rated power | 7kW |
| Dimensions and weight | 87mm（H）×178mm（W）×385mm（D), ≤7 kg |
