EXP600K3-FWR5
600kW Power Cube/12 Charging Connectors, Overhead Charging Dispenser Solution
Product Introduction
EXP600K3-FWR5 Split type high power charger is specially designed for the EV charger operators with split and multi charging
point applications. It supports CCS/NACS/CHAdeMO/GBT compatible charging connectors, 600kW high power output and max
12 charging connectors with 6 dual-connectors dispensers or 12 single-connector dispensers. It also supports 500A liquid cooled
charging connector with full power. Intelligent power switching matrix can realize the power modules power switch between the
charging connectors to maximize the power using efficiency. The overhead dispenser for the bus station solution is also available
with the same power cube.
-
Building-block modular design, simplified & standardized interface -
Max 12 charging channels configuration, 300A or 500A configuration -
cTUVus, CE, RED, CB and OCA certification, Energy Star certification -
Power cube IP54, stand floor dispenser IP55, overhead dispenser IP65, reliable & robust -
Patented U-Type air duct design -
Customizable dispenser, overhead dispenser for bus station solution -
WEB/APP Maintenance Backend System enhances the operation and maintenance effectiveness -
High power density with best space efficiency -
Power cube 65dB, stand floor dispenser 55dB, overhead dispenser 0dB -
BABA support
Application Scenario
-

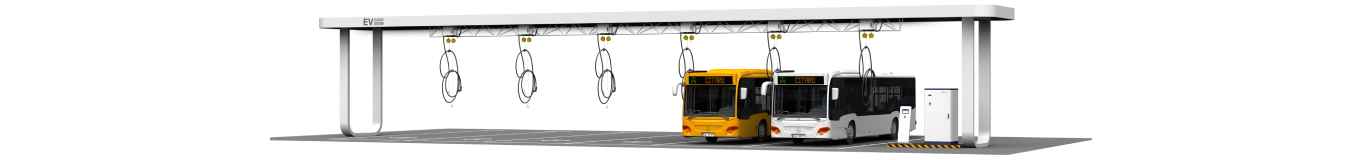

Overhead Micro Charging Dispenser Solution for the Bus Station
Technical Specification
-
EXP600K3-FWR5
-
AC input
AC input frequency/voltage 45-65Hz/ 3-phase+(N)+PE /260Vac-530Vac AC max input current CE: 2*480A@380Vac/UL:2*380A@480Vac Power factor >0.99 Total harmonic current <5% (rated input) -
DC output
Output DC voltage range 150V-1000V Max DC output power 600kW@300V~1000V DC output current Max 500A for each output charging channel, opt max 300A for each output charging channel Max system efficiency >95.5% (rated input and output) Output channel Max 12 output charging channels as the input of the charging dispensers Dispenser support Max 6 dual-connectors dispensers or 12 single-connector dispensers -
HMI
RGB LED, E-STOP -
Mechanical
Dimensions: W * H * D mm = 1050 * 2200 * 1150 mm Weight: 690kg + 20 * 15.5kg = 1000 kg (full power modules) -
Protection class
IP54 -
Noise
<60dB (@25°C, rated input and output ), max noise < 65dB -
Power switch
Power can switch among the power module groups to each output channel to maximize the power efficiency -
Power module
Max 20 module slots REG1K0100G2 30kW/1000V power module -
HMI kiosk (opt)
Tempered glass protective 10" capacitive touch screen LCD, RFID, POS (opt) -
Manufacture
BABA support -
Charging Dispenser-Stand Floor Dispenser (EXP200/250 FDC)
DC input DC input voltage range：150V~1000V
DC input channel：2 channel DC busDC output Output charging cable：2
Output DC voltage range：150V~1000V
Max DC output current：2 * 200A (opt 250A)HMI Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt) Metering DC energy meter, GB/T 29318 and JJG1149 standard, optional MID meter Monitor OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support Cable management Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser MBE function support WEB side Maintenance Backend System enhances the operation and maintenance effectiveness Charging protection Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protectionMechanical Dimensions: W*H*D mm：500*1800*260/185kg/IP55/IK10 Charging connector configuration 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO Charging connector capacity GBT:250A (opt 400/500A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A) Noise 0 -
Charging Dispenser-Stand Floor Dispenser (EXP300-FDC)
DC input DC input voltage range：150V~1000V
DC input channel：2 channel DC busDC output Output charging cable：2
Output DC voltage range：150V~1000V
Max DC output current：2*300AHMI Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt) Metering DC energy meter, GB/T 29318 and JJG1149 standard, optional MID meter Monitor OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support Cable management Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser MBE function support WEB side Maintenance Backend System enhances the operation and maintenance effectiveness Charging protection Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protectionMechanical Dimensions: W*H*D mm：500*1800*260/185kg/IP55/IK10 Charging connector configuration 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO Charging connector capacity GBT:250A (opt 400/500A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A) Noise 0 -
Charging Dispenser-Stand Floor Dispenser (EXP400-FDC)
DC input DC input voltage range：150V~1000V
DC input channel：2 channel DC busDC output Output charging cable：2
Output DC voltage range：150V~1000V
Max DC output current：2*375AHMI Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt) Metering DC energy meter, GB/T 29318 and JJG1149 standard, optional MID meter Monitor OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support Cable management Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser MBE function support WEB side Maintenance Backend System enhances the operation and maintenance effectiveness Charging protection Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protectionMechanical Dimensions: W*H*D mm：500*1800*260/185kg/IP55/IK10 Charging connector configuration 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO Charging connector capacity GBT:250A (opt 400/500A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A) Noise 0 -
Charging Dispenser-Stand Floor Dispenser (EXP500-LDC/LLDC)
DC input DC input voltage range：150V~1000V
DC input channel：2 channel DC busDC output Output charging cable：2
Output DC voltage range：150V~1000V
Max DC output current：500A + opt 200A/300A/375A/500AHMI Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt) Metering DC energy meter, GB/T 29318 and JJG1149 standard, optional MID meter Monitor OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support Cable management Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser MBE function support WEB side Maintenance Backend System enhances the operation and maintenance effectiveness Charging protection Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protectionMechanical Dimensions: W*H*D mm：500*1800*260/195kg/ IP55/IK10 Charging connector configuration 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO Charging connector capacity GBT:250A (opt 400/500A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A) Noise 55dB -
Charging Dispenser-Overhead Dispenser (EXP250/300-FSW)
DC input DC input voltage range：150V~1000V
DC input channel：1 channel DC busDC output Output charging cable：1
Output DC voltage range：150V~1000V
Max DC output current：200A (opt 250A/300A)HMI Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt) Metering DC energy meter, GB/T 29318 and JJG1149 standard, optional MID meter Monitor OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support Cable management Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser MBE function support WEB side Maintenance Backend System enhances the operation and maintenance effectiveness Charging protection Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protectionMechanical Dimensions: W*H*D mm：763*415*240/50kg/IP65 Charging connector configuration 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO Charging connector capacity GBT:250A (opt 400/500A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A) Noise 0 -
Standard
Charging standard GBT 27930-2011 and 27930-2015, CHAdeMO V1.2/V2.0, DIN70121 and ISO15118, OCA EMC/safety UL2202, CSA C22.2; CE/RED/CB; EN 61851-21-2/EN 61000-6-4/EN 61000-6-2 Class A; EN 61851-1/EN 61851-23/EN 61851-24 -
Working Environment
Ambient temperature Working temperature range -30~+70°C, full load temperature range -25~+50°C, power derating 5%/°C above 50°C Storage temperature -40~+75°C Working humidity 0 ~ 95% Working altitude 2000 m
