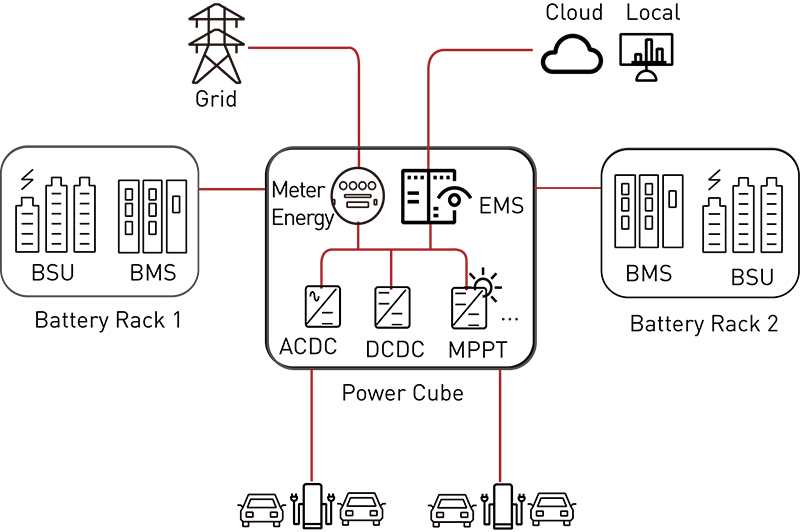

Flexible flow of energy
Well-controlled energy flow among Grid,
batteries, solar panels and other loads.
Expandability
Module-design guarantees tailored
capacity and power based on
individual customer requirement.
Load shifting
Store energy during off-peak power
or low-fee intervals; release energy
for peak hours or emergency shortage.
Digitalization
Cloud-based EMS offers remote
access to manage the operation
of any charging point.
IES480K1K 480kW Power Cube
| AC grid access |
AC input voltage | 45-65Hz / 3-phases + N + PE / 260vac-530vac |
|
| AC max input current | 645A | ||
| AC Distribution | AC Grid charging power to Energy Storage Battery is max 120kW. to EV is max 240KW |
||
| AC feedback power (optional) | Energy Storage Battery max feedback to Grid / B2G is 88KW |
||
| Energy Storage | Battery group access channel | Max 2 channels | |
| Battery charging power from AC Grid | Max 120KW | ||
| Battery access | Battery B2V EV charging power | Max 4 channels | |
| Battery B2V EV charging power | Max 240kW | ||
| Battery B2G AC grid feedback power (optional) |
Max 88kW | ||
| Electric Vehicle | EV Charging point | Max 4 point within 2 Dispensers | |
| EV Charging power | Max 480kW | ||
| Electric Vehicle Discharging | EV feedback to AC Grid / V2G power (optional) |
Max 176kW | |
| EV feedback to Energy Storage Battery /2Bpower (optional) |
Max 120kW | ||
| Dimensions | W * H * D mm = 1000 * 2200 * 1200 mm | ||
IBS215K1KC 200kWH Battery Cube
| Energy Storage Battery | 200kWh/280Ah Energy storage battery, Battery voltage: 627V~806V, Charging/ discharging ratio: 0.5 C dis/charge, max 1 C discharge 10 min |
| Battery BMS | Battery Pack BSU + High voltage control box master-slave BMU |
| Battery Capacity Expand | Max 4 groups battery/battery cube access, 4 BMU |
| Fire suppression system | Temperature-activated fire extinguishing system + fire probe tube + Air pressure sensor and valves, emergency fan |
| Protection Class | IP65 |
| Dimensions/Weight | W * H * D mm = 1200 * 2200 * 1200 / 1600 kg |
EXP480K2-LDC 480kW Charging Dispenser
| Normal Charging Cable | CCS1 200A/300A 1000V, CCS2 200A/250A 1000V. CHAdeMO 125A/500V, GBT 250A/1000V |
| Liquid cooling cable | 500A/1000V CCS1 or CCS2 or GBT |
| Dimensions | W * H * D mm = 500 * 1750 * 350 mm Weight: 160 kg |
Energy Storage Charging Solution
